AEM

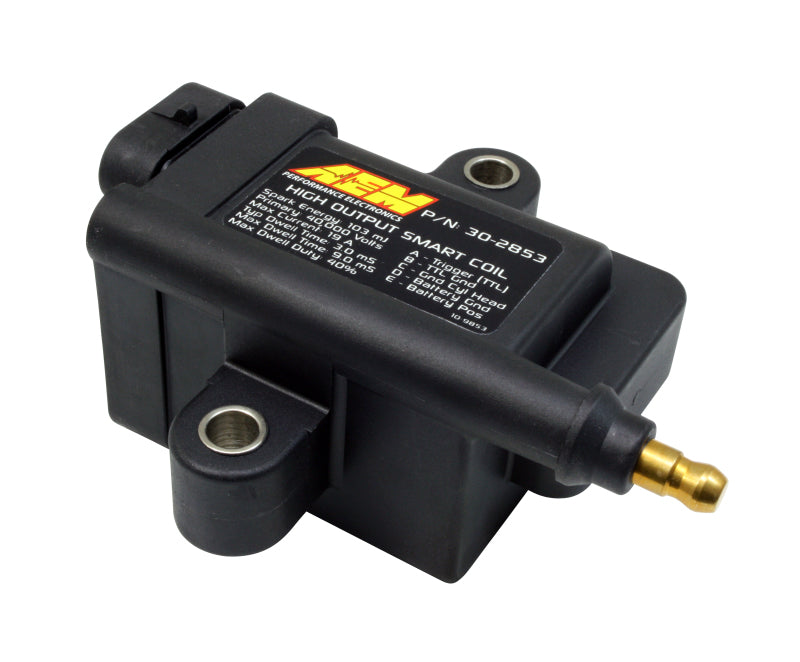

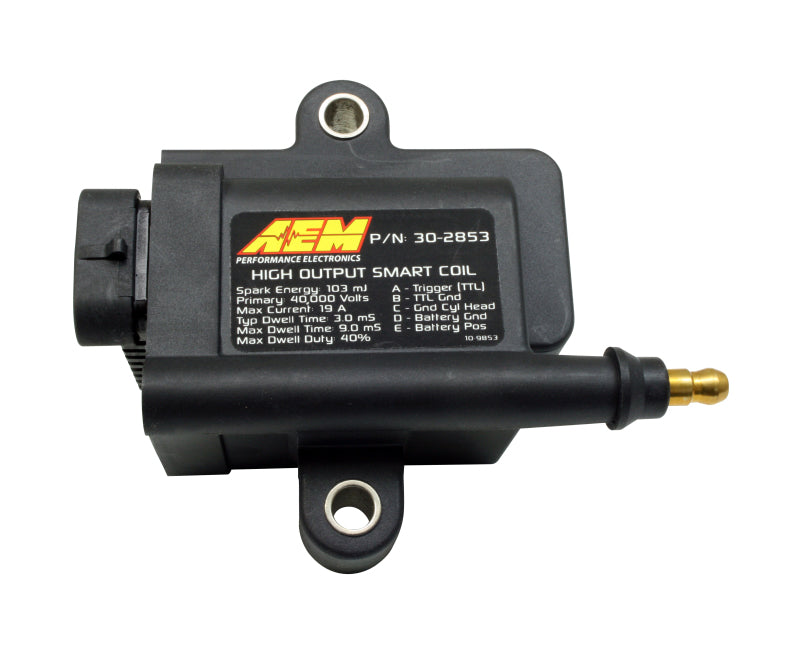

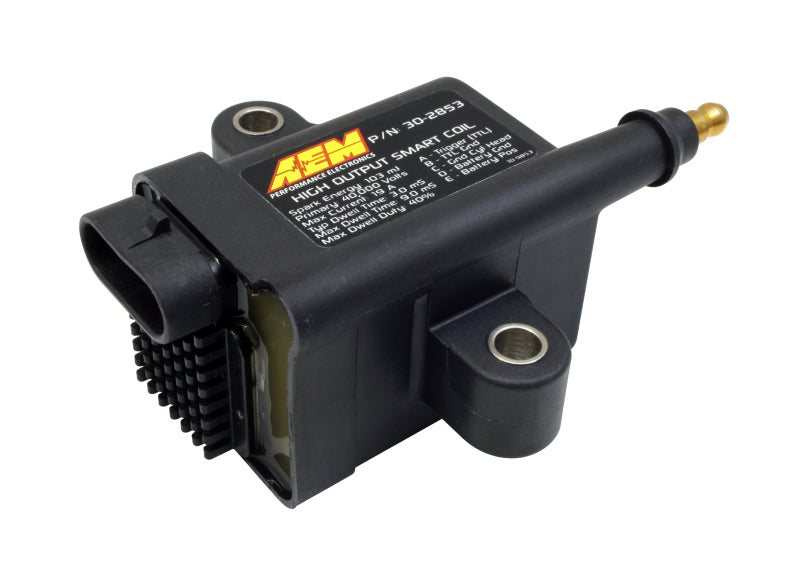

AEM Universal High Output Inductive Smart Coil

SKU: AEM30-2853
(0)
Out of stock
$83.66 USD
-20% $104.95 USD $83.66 USD
Upgrade your build with confidence.

Quality performance parts from trusted brands, selected for enthusiasts who care about their builds. Upgrade with confidence and keep your project moving forward.

Questions about your build?

We're here to help you find the right parts. Contact us here.

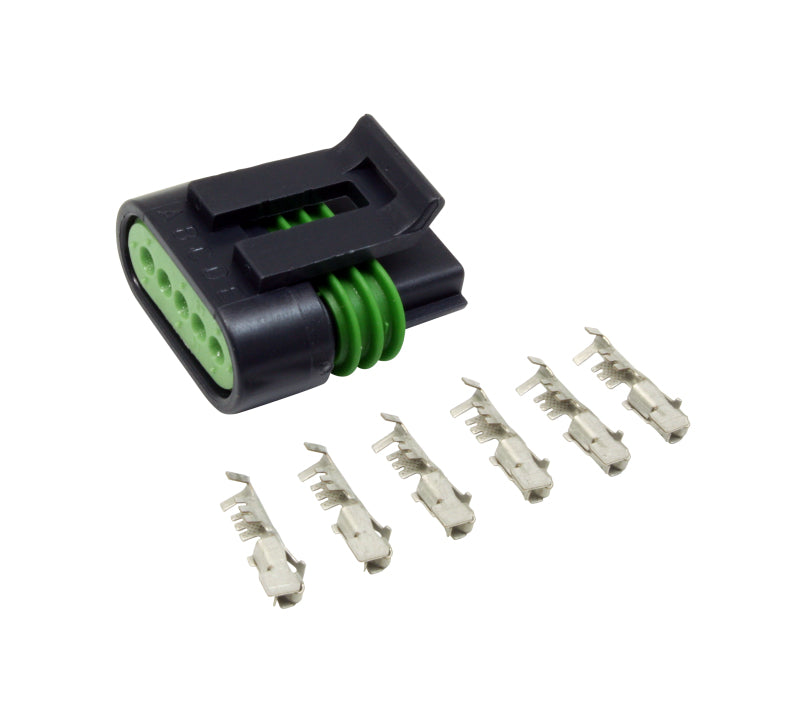

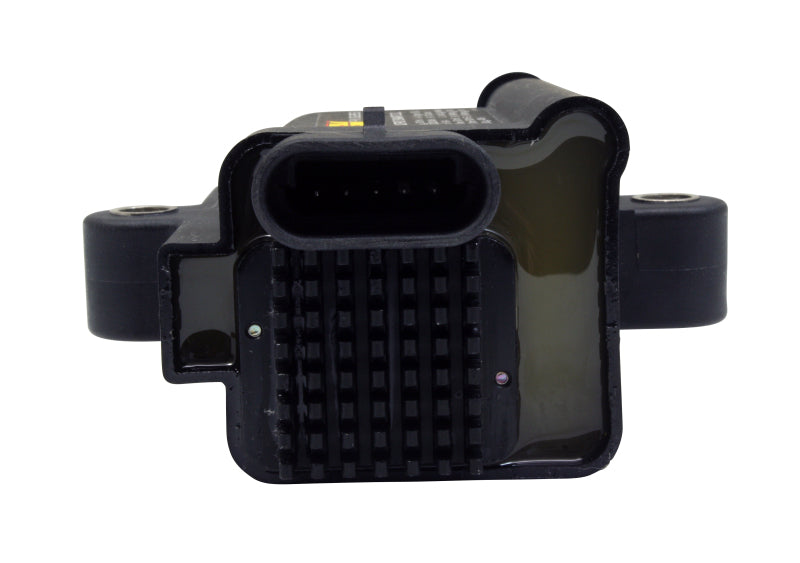

AEM High Output IGBT Smart and Dumb Coils are designed for coil-near-plug use ONLY and are not intended for distributed ignition systems. AEM cannot guarantee or warranty IGBT coil performance when used on distributed ignition vehicles. The coil delivers a minimum 40kV output with no load and 40kV ±10% with a 50pF load. Output energy is 103 mJ ±7%, peak secondary current is 102 mA ±10%, arc duration is 2.9 mS ±10%, and turns ratio is 71:1. Maximum current is 19 amps with a maximum battery voltage of 17 volts. Base dwell is 3.0 mS. Maximum continuous dwell is 9 mS and should not exceed a 40% duty cycle, while maximum intermittent dwell is 80% duty cycle for up to 5 seconds. Uses a Packard/Delphi 12162825 "Pull to Seat" mating connector and Packard/Delphi 12124075 "Pull to Seat" mating contacts. The high-tension wire terminal uses an HEI "spark plug top" style connection.
